FreeFD Example Valve Incompressible

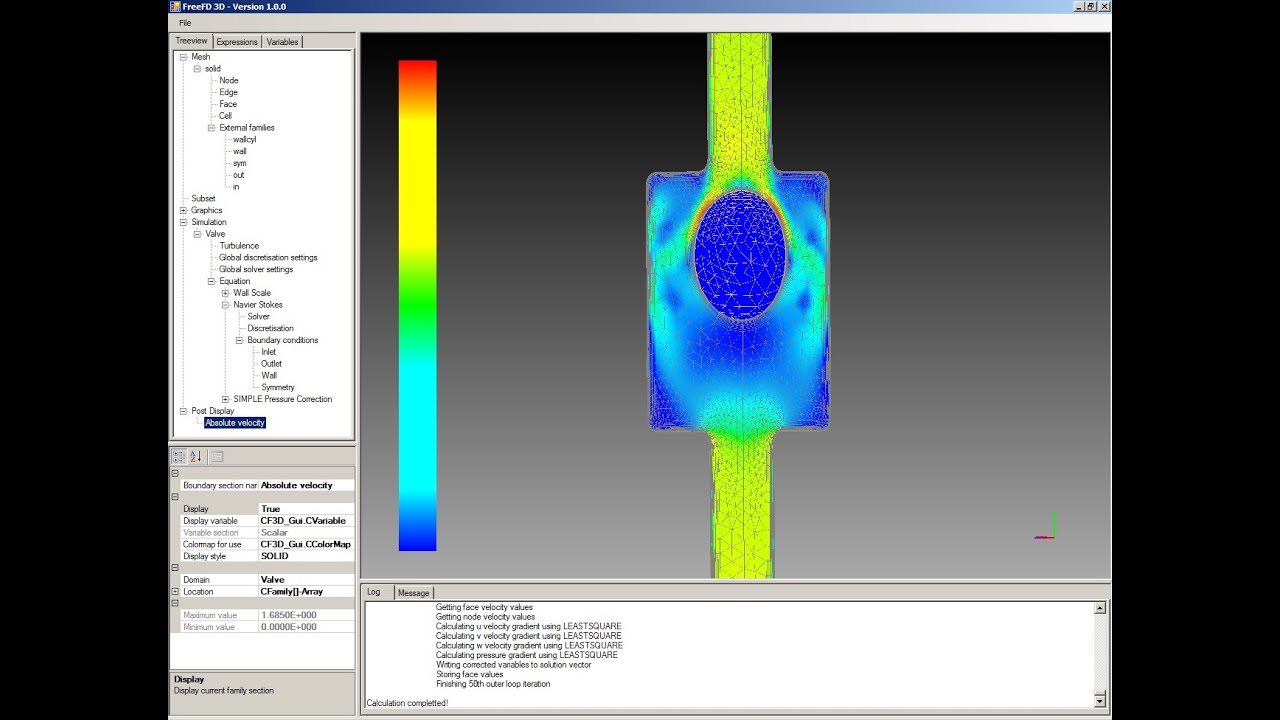

FreeFD 3D example: Valve
Incompressible flow

SST turbulence model

156k Cells - unstructured grid

Inverse distance weighted least square gradient approximation at extendet stencil

Second order upwind convective flux approximation with modified Barth and Jespersen gradient limiter

Medium: Air at 25C

Modified rhie chow momentum interpolation

SIMPLE pressure correction

Scaled outlet massflow assuming fully developed flow

Paralution mathamatical library

OpenGL graphic library

Integration via wrapper class using runtime interopt service

Graphic user interface designed in MS Visual C# 2015

Mathamatical functions designed in MS Visual C++ 2015

Have much fun...
