How to Build a 4-Bit Computer on Breadboards Using Individual Transistors

Full Parts List.
Quality Breadboards (32 Breadboards Used)
amzn.to/4iw1MVG
2N2222 Transistors (962 Transistors)
amzn.to/41Nqg5H
Breadboard 22 Gauge Wire (Around 3 packs)
amzn.to/4iK1gnj
LEDs (1 Set)
amzn.to/4izng4c
Resistors 2K 1/4 Watt Metal Film Type (Around 800)
amzn.to/4kPbp3m
Resistors 100K 1/4 Watt Metal Film Type (Around 200)
amzn.to/4kPbp3m
Other Resistors (1-Pack)
amzn.to/4hxJbY2
Ceramic Capacitors (1 Set)
amzn.to/4iT36ln
Electrolytic Capacitors(1 set)
amzn.to/4bZwLak
Electrical Tape
amzn.to/41NvOx3
10000mAh Rechargeable Battery Pack
amzn.to/41WFoxQ

Recommended Tools
Wire Stripper
amzn.to/4hzF6md
Side Cutter
amzn.to/4izvdq4
Scissors (To mark wire cuts and cut resistors to length)
amzn.to/4iTaL37
Automatic Wire Stripper (I did not use this but it could be nice)
amzn.to/4iuwaQn

Good Reference Book on Building a Computer from Transistors.
Computer Time Travel Book
amzn.to/4iRcxli

As an Amazon Associate, Global Science Network earns from qualifying purchases.

Video Description:

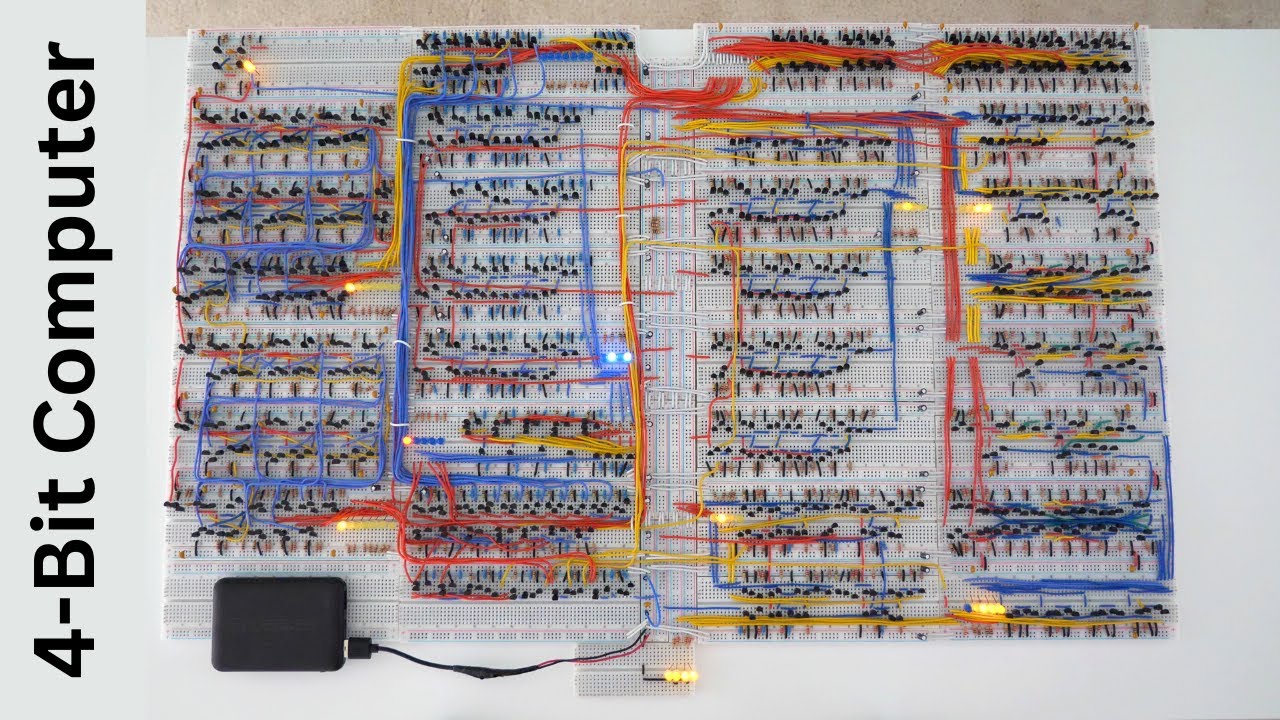

A simple 4-bit computer is built on breadboards using individual transistors. This computer is called the GSN477. This is because it was built for the Global Science Network, is 4-bit, and contains two 7-stage counters.

Sections of the computer are the clock, program counter, ring counter, 10 bytes of memory, opcode register, opcode decoder, control matrix, data bus, accumulator register, output register, register B, and ALU.

Circuits are built using NAND digital logic gates, XOR gates, AND gates, inverters, buffers, and tri-state buffers. Larger circuits include D flip Flops, MS D flip flops, Edge triggered JK flip flops, and MS JK flip flops.

The computer shows how computers add and subtract numbers while running a simple program and this video was submitted for the #some3 competition.

0:00 Intro.
0:51 Computer overview.
1:30 Example program.
4:12 The clock
4:22 Ring Counter
4:53 Program Counter
5:33 10 Bytes of Memory
7:01 Opcode Register
7:11 Opcode Decoder
8:19 Control Matrix
9:06 Data Bus
9:44 Accumulator Register
10:21 B Register
10:51 ALU
11:15 Output Register
11:35 Building Suggestions

References:
Walker, J. S. Computer Time Travel: Building a Computer Processor from Discrete Transistors: A Look Back over 50 Years to the Beginning of Modern Computer Technology.

Oldfangled Publishing, 2017. Malvino, Albert P. Digital Computer Electronics. 1993.

Article I wrote about the 4-bit Computer.
www.gsnetwork.com/4-bit-computer-built-on-breadboa…
